The Overall Design Scheme of RO Desalination Technology
With many years of practical experience BIC desalination engineers, not only in term of grasping desalination device system of reverse osmosis membrane, high-pressure pump, the performance of the core products such as energy recovery device, and accumulated rich experience in practical engineering, can according to the customer provide the raw water quality, water rate and water production of water quality requirements, such as electrical control requirements to provide customers with technical consulting, system design and maintenance and other after-sales service technical guidance, etc. We would like to provide the most excellent technical services to customers around the world.
Seawater desalination process

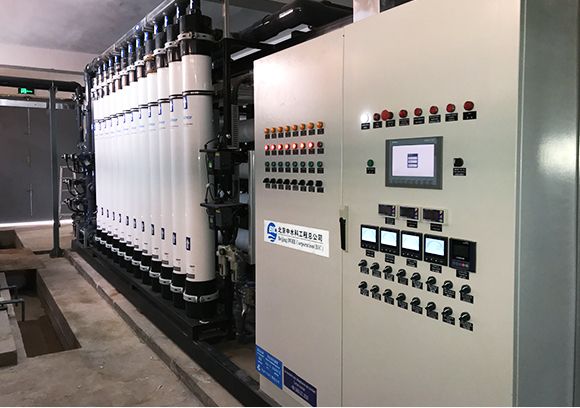

Seawater Desalination System Built in Plant
The facilities location of the complete set of seawater desalination system is in a built factory. The whole equipment in strict accordance with international industry standard design, manufacture, installation and use the most advanced technology for energy recovery device and control. BIC company provides design, production installation and debugging of turnkey project.

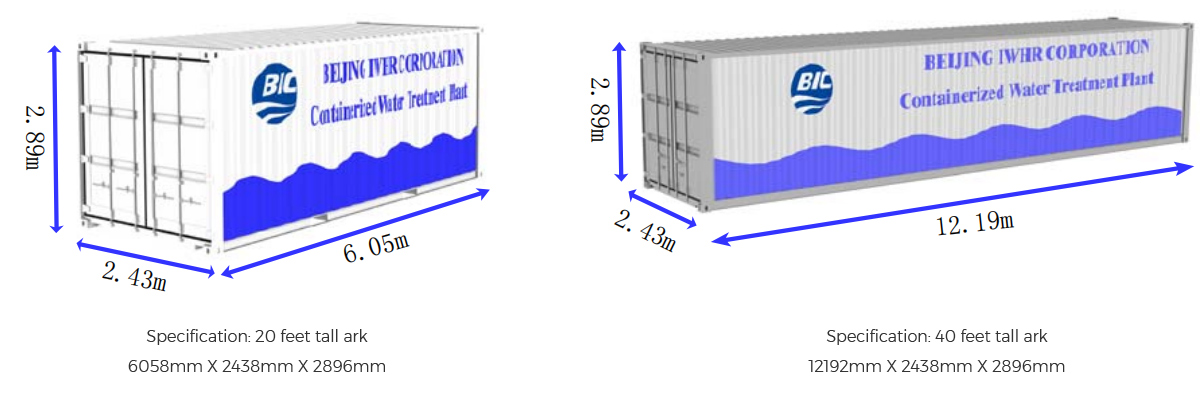

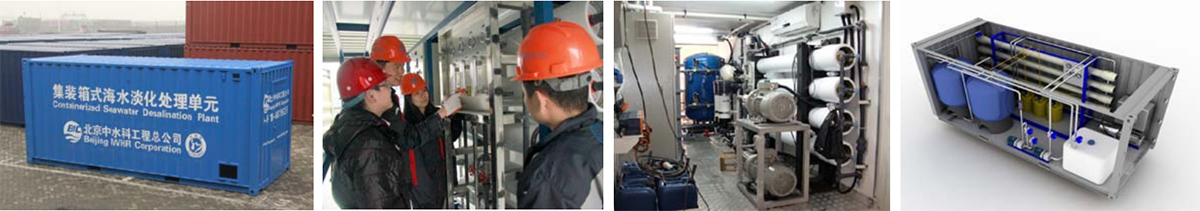

Containerized Seawater Desalination System
BIC condensed the desalination design concept in the container, international transportation, not only satisfy the full again enough customers for delivery and installation and debugging cycle shortening. The system can be operated in a short period of time to making qualified fresh water supply, especially suitable for the coastal water engineering, remote areas or island region. It is selective to be used as civilian or military, and equipment could be fixed installation or removable.
Product Specification of Containerized Seawater Desalination Plant
Product Model of Containerized Seawater Desalination Plant
Model Parameter | SW-6S | SW-12S | SW-18S | SW-24S | SW-50C | SW-70C | SW- 120C | SW- 160C | SW- 220EC | SW- 320EC | SW- 500EC | SW-640EC | |
| Water quantity m3/d | 6 | 12 | 18 | 24 | 50 | 70 | 120 | 160 | 220 | 320 | 500 | 640 | |
| Rated recovery% | 25/28 | 30/32 | 30/32 | 30/32 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | |
| Energy recovery device | / | / | / | / | / | / | / | / | iSave21 | iSave21 | iSave40 | iSave40 | |
| Overall dimensions(mm) | length | 1100 | 1100 | 1300 | 1500 | 6000 | 6000 | 6000 | 6000 | 12000 | 12000 | 12000 | 12000 |
| wide | 600 | 600 | 600 | 600 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | |
| height | 1600 | 1600 | 1800 | 1800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | |
| Power consumption | 3KW | 6KW | 6.6KW | 8.5KW | 25KW | 28KW | 45KW | 60KW | 50KW | 68KW | 88KW | 120KW | |
